ESP32-C3 bench checks without an RF source

This page records the first checks of a Seeed XIAO ESP32C3 running the ESP-SDR firmware, made without any RF source connected (GitHub issue #41, part of the maintainer tasks in #11). It covers the firmware's replies, the maximum number of samples per capture, the noise seen by the receiver, narrow spurious lines, the sign of frequency, and what the acquisition reports on noise-only captures.

Terms used on this page:

• Sample: one complex I/Q pair. Capture: one CAP20 request, 16380 samples at 80 MSa/s (204.75 µs).
• 10-bit scale: the integer values of each component as transferred by CAP20, from −512 to 511. Means, standard deviations and powers below are on this scale.
• I and Q: the components as snappnt.io.espsdr_iq reads them (I is the high 10-bit field of each sample, Q the low field; see ESP-SDR protocol, "Which component is I").
• Power (dB): 10·log10 of the mean of |x − mean(x)|² over one capture, on the 10-bit scale.
• PSD: power spectral density, the mean of 1024-point Hann-windowed periodograms of one capture after its mean is removed. dB values of PSDs are relative and uncalibrated.
• Line: a local maximum of the PSD more than 8 dB above the running median over 31 bins (about 2.4 MHz).

Conditions

Item	Value
Board	Seeed XIAO ESP32C3, U.FL connector left open (no antenna, no termination)
Surroundings	2.4 GHz Wi-Fi access points nearby; nothing transmitted by the test
Firmware	ESP-SDR, written with the project's browser installer on 2026-10-02
Host link	Native USB Serial/JTAG (TRANSPORT USB 0)
Software	snappnt capture (10-bit transfer, CAP20) and a short pyserial script for the replies
Analysis	tools/plot_esp32_bench.py

The browser installer does not report which firmware commit it writes. The CAPS reply below contains words (SPEC SPECN SPECCAPS SPECSTAT DCT) that the C3 receiver does not have at commit 4935ac2, the commit that ESP-SDR protocol cites, and that it has at commit 550fade (2026-10-01). The firmware is therefore newer than 4935ac2; the exact commit is unknown. Between those two commits, the code that answers INFO, CAP16, CAP20 and writes the DATA header did not change (upstream diff of main/targets/esp32c3/receiver.c).

The recordings are kept locally and are not committed (out/ is ignored by git).

Firmware replies

Sent one at a time, each reply read completely before the next command:

INFO        -> C3SDR 6 burst 16380
CAPS        -> CAPS SPEC SPECN SPECCAPS SPECSTAT DCT UARTBAUD RXLIMITS SERIALLEASE DUALSERIAL TUNEEXT LPFANA GAIN HWAGC IQ8
LIMITS?     -> LIMITS {"gain":[0,79,1],"bandwidth":[14,62,1,0],"rates":[80000000],"bits":[8,10]}
RANGE?      -> RANGE 100 6000 1
TRANSPORT?  -> TRANSPORT USB 0
GAIN?       -> GAIN HARDWARE -1 0 79 0
FREQ 2492   -> OK

• All replies match ESP-SDR protocol except CAPS, which has the additional words described above.
• Under hardware AGC, GAIN? reports gain index −1. The gain that the AGC chooses is therefore not known to the host, and it is not recorded in the SigMF metadata.

Maximum samples per capture

Request	Reply	Payload
CAP20 256 0	DATA 256 <crc> 5	640 bytes, CRC-32 matches
CAP20 16380 0	DATA 16380 <crc> 206	40 950 bytes, CRC-32 matches
CAP20 16381 0	ERR command	none

The maximum on the ESP32-C3 is 16380 samples, as the INFO reply states. src/snappnt/frontend/devices/esp32c3.yaml assumed 16384 and is changed to 16380 with this page. The results pages computed with 16384 samples (detection probability, false-alarm rate, C/N0 bias) are not re-run: the difference is 4 samples, 0.02 % of the snapshot.

The CRC-32 in the DATA header matched zlib.crc32 of the payload in every capture on this page (more than 300), which confirms that the firmware's CRC is the standard reflected CRC-32.

Noise statistics at 2492 MHz

Captures tuned to 2492 MHz, the whole-MHz frequency nearest the NavIC S-band centre (2492.028 MHz).

Gain	Analog bandwidth	Captures	I mean	Q mean	I std	Q std	I min..max	Q min..max	Power (dB)
index 20	62 MHz	5	17 to 22	6 to 12	4.0 to 4.1	3.6 to 3.9	−1..39	−10..29	14.7 to 15.1
index 40	62 MHz	5	15 to 21	3 to 5	4.7 to 4.8	4.7 to 4.8	−4..39	−16..22	16.5 to 16.7
index 60	62 MHz	5	−41 to −38	−6 to −3	9.1 to 12.3	9.2 to 12.4	−89..9	−62..44	22.2 to 24.8
index 79	62 MHz	5	−285 to −262	−19 to 24	74.5 to 81.9	72.5 to 79.7	−509..88	−345..315	40.4 to 41.2
hardware AGC	14 MHz	20	−288 to −199	−23 to 5	20.9 to 28.3	20.9 to 27.0	−393..−111	−130..122	29.4 to 31.7
hardware AGC	62 MHz	20	−276 to −173	−22 to 50	43.5 to 140.2	42.8 to 136.8	−511..264	−492..490	35.7 to 45.8
hardware AGC	not recorded (see below)	20	−296 to −199	−44 to 3	26.5 to 34.4	26.2 to 32.7	−423..−79	−155..128	31.4 to 33.4

Ranges are over the captures of each row.

DC offset. Both components have a non-zero mean, and I has a much larger one than Q. At gain index 79 and under hardware AGC the mean of I is about −200 to −300, roughly half of full scale, while the mean of Q stays within about ±50. The offset drifts within one capture: in one AGC capture the mean of I over successive eighths of the capture went from −282 to −257. A mean this large leaves less range on the negative side of I; in one AGC capture with 62 MHz bandwidth I reached −511, the end of the 10-bit range. At gain index 20 and 40 the offset is small in absolute terms (about +20 on I) but still four to five times the standard deviation.

Gain index. The noise power rises by 2 dB from gain index 20 to 40, by 6 dB from 40 to 60, and by 17 dB from 60 to 79. The index is not linear in dB. At index 20 and 40 the standard deviation is about 4, so the samples use only a few ADC steps.

Hardware AGC. With 62 MHz bandwidth the power varied by 10 dB between captures (35.7 to 45.8 dB), with 14 MHz by 2.3 dB. The wider band takes in more of the nearby Wi-Fi traffic, which is present in some captures and not in others. This explanation is an assumption; the captures were not checked one by one for Wi-Fi packets.

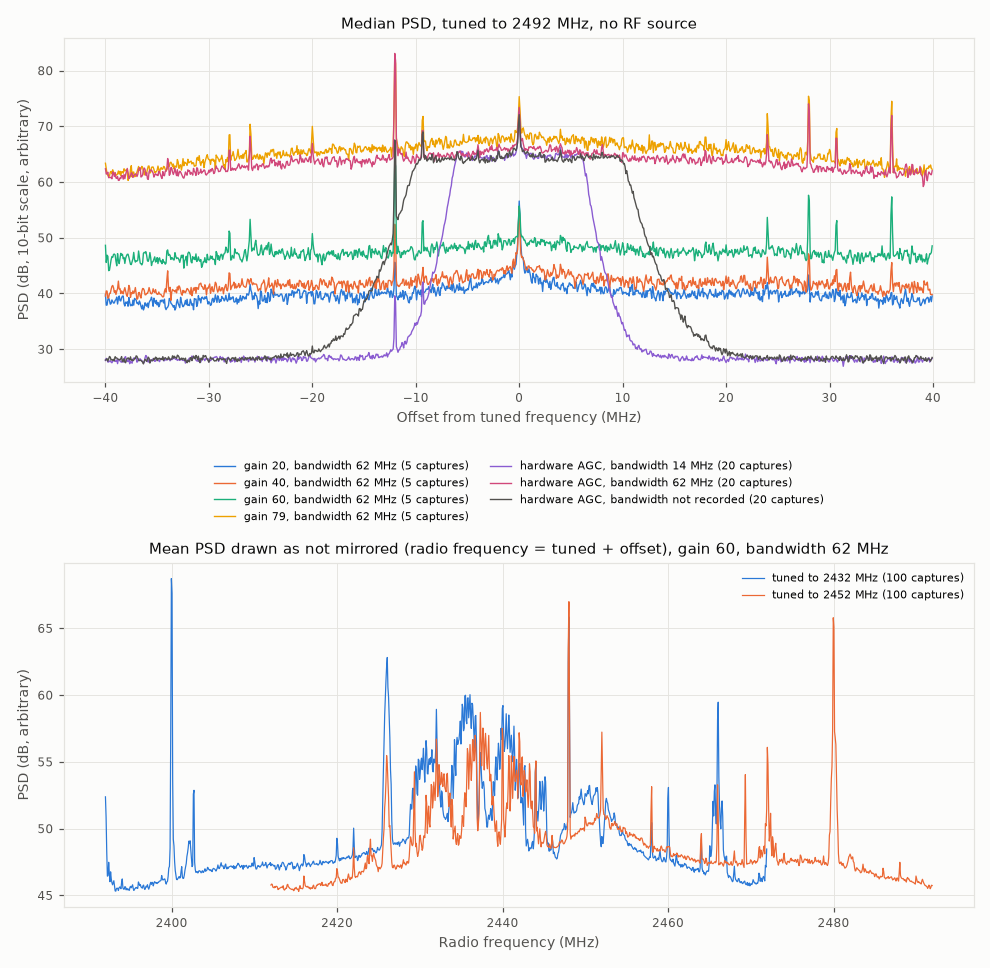

Analog bandwidth. The upper panel of the figure shows the median PSD for each setting. With 14 MHz the pass band is about ±7 MHz wide and the floor outside it is about 36 dB below the pass band. With 62 MHz the PSD is within a few dB across the whole ±40 MHz.

Bandwidth not recorded. In the last row, snappnt capture was run without --bandwidth-mhz after the browser viewer had set 20 MHz. The firmware kept that setting, and the PSD shows a pass band of about ±10 MHz, but the SigMF metadata contains no bandwidth. This is tracked in #44.

Narrow lines

Lines in the median PSD at 2492 MHz (height above the local floor; the line at 0 Hz is described below the table):

Setting	Lines (offset from 2492 MHz → radio frequency, height)
Gain 20, 62 MHz	none
Gain 40, 62 MHz	−12 MHz → 2480 MHz (11 dB)
Gain 60, 62 MHz	−12 MHz → 2480 MHz (16 dB); +28 MHz → 2520 MHz (10 dB); +36 MHz → 2528 MHz (10 dB)
Gain 79, 62 MHz	−12 MHz → 2480 MHz (16 dB); +28 MHz → 2520 MHz (11 dB); +36 MHz → 2528 MHz (12 dB)
AGC, 14 MHz	−12 MHz → 2480 MHz (10 dB)
AGC, 62 MHz	−12 MHz → 2480 MHz (19 dB); +28 MHz → 2520 MHz (11 dB); +36 MHz → 2528 MHz (10 dB)

A line at 0 Hz remains after the mean is removed at some settings; it comes from the drift of the DC offset within a capture.

With 14 MHz bandwidth the 2480 MHz line is still visible although it lies outside the pass band. Weaker lines near −34, −28, −26, −20, +24 and +31 MHz are visible in the figure but stay below the 8 dB criterion.

The lines stay at fixed radio frequencies when the tuned frequency changes (next section): 2400, 2440, 2448 and 2480 MHz were seen at 2432 or 2452 MHz. All lines seen so far are at multiples of 4 MHz. That they are harmonics of a clock on the board is an assumption; the board's clock frequencies were not checked.

For NavIC S-band the nearest lines are 2480 MHz (12 MHz below 2492.028 MHz) and 2520 MHz (28 MHz above). Both are far outside the ±40 kHz frequency search of acquisition.

Sign of frequency

ESP-SDR protocol left open whether a positive baseband frequency from espsdr_iq corresponds to a radio frequency above the tuned frequency, or whether the spectrum is mirrored. The check uses signals that are already present and transmits nothing.

Captures: 100 at 2432 MHz and 100 at 2452 MHz (both Wi-Fi channel centres), gain index 60, 62 MHz bandwidth. If the spectrum is not mirrored, a signal at a fixed radio frequency appears at a baseband offset 20 MHz lower in the 2452 MHz captures than in the 2432 MHz captures. If it is mirrored, it appears 20 MHz higher.

1. Lines. Read as not mirrored, the lines at 2440 MHz (10 dB and 10 dB) and 2448 MHz (18 dB and 18 dB) fall on the same radio frequency at both tuned frequencies, with the same heights. Read as mirrored, two pairs also coincide (2424 MHz and 2464 MHz), but with heights of 10 and 18 dB and of 22 and 10 dB.
2. Wi-Fi traffic. The mean PSDs, median-filtered over 9 bins so that broad signals decide, match best when the 2452 MHz spectrum is shifted by −18.4 MHz (correlation 0.82). The correlation is 0.69 at −20 MHz (not mirrored) and −0.39 at +20 MHz (mirrored). The traffic was not the same during the two recordings, which limits this measure.

Result: the spectrum is not mirrored. A positive frequency from espsdr_iq is a radio frequency above the tuned frequency, which is the convention the simulator and the acquisition use. The lower panel of the figure draws both recordings against radio frequency on this basis.

Acquisition on noise-only captures

NavIC S-band SPS, PRN 10, centre +28 kHz (2492.028 MHz − 2492 MHz), search ±40 kHz, one block, pfa = 0.001 (the default). Five captures of each 2492 MHz setting (35 captures), each once as recorded and once with its mean subtracted:

Input	Largest cell	Metric	Detections
As recorded	about 172 to 180 chips and −10696 or −8254 Hz in 29 of 35 captures; about 304 chips and −27790 Hz in 4 more	7.4 to 8.3	0 of 35
Mean subtracted	different in each capture	10.9 to 16.3	0 of 35
White Gaussian noise, 16380 samples, seeds 0 to 29 (reference)	different in each trial	11.6 to 17.4 (median 13.6)	0 of 30

The threshold was 21.7 throughout. There were no false detections.

As recorded, the largest cell is almost always in one of two places, at every gain setting including index 20 where the offset is only about +20. With the mean subtracted, the largest cell moves from capture to capture and the metric falls in the same range as for white Gaussian noise. As far as this metric shows, the receiver noise after mean removal behaves like white Gaussian noise for acquisition.

The lower metric as recorded means that the DC offset raises the noise-floor estimate that the metric divides by. That a real signal would lose sensitivity by the same mechanism is an assumption; it is measured in #43, with a simulated DC offset from #42.

Not checked

• The firmware commit (see Conditions).
• The noise figure of the receiver and the absolute gain at each index: no calibrated source was connected.
• Whether the AGC power variation is caused by Wi-Fi traffic.
• Any tuned frequency other than 2432, 2452 and 2492 MHz.

Reproduce

uv sync --extra hw
uv run snappnt capture <port> --freq-hz 2492e6 --bandwidth-mhz 62 --gain 60 --count 5 -o out/noise/g60
uv run snappnt capture <port> --freq-hz 2432e6 --bandwidth-mhz 62 --gain 60 --count 100 -o out/sign/lo2432
uv run snappnt capture <port> --freq-hz 2452e6 --bandwidth-mhz 62 --gain 60 --count 100 -o out/sign/lo2452
uv run --extra plot python tools/plot_esp32_bench.py out/noise out/sign -o docs/results/esp32c3-bench-no-rf.png
uv run --extra plot python tools/plot_esp32_bench.py out/noise --acquire-prn 10 --acquire-max 5

The other rows of the table use --gain 20, 40, 79 with --count 5, and --gain auto with --bandwidth-mhz 14 or 62 and --count 20.
